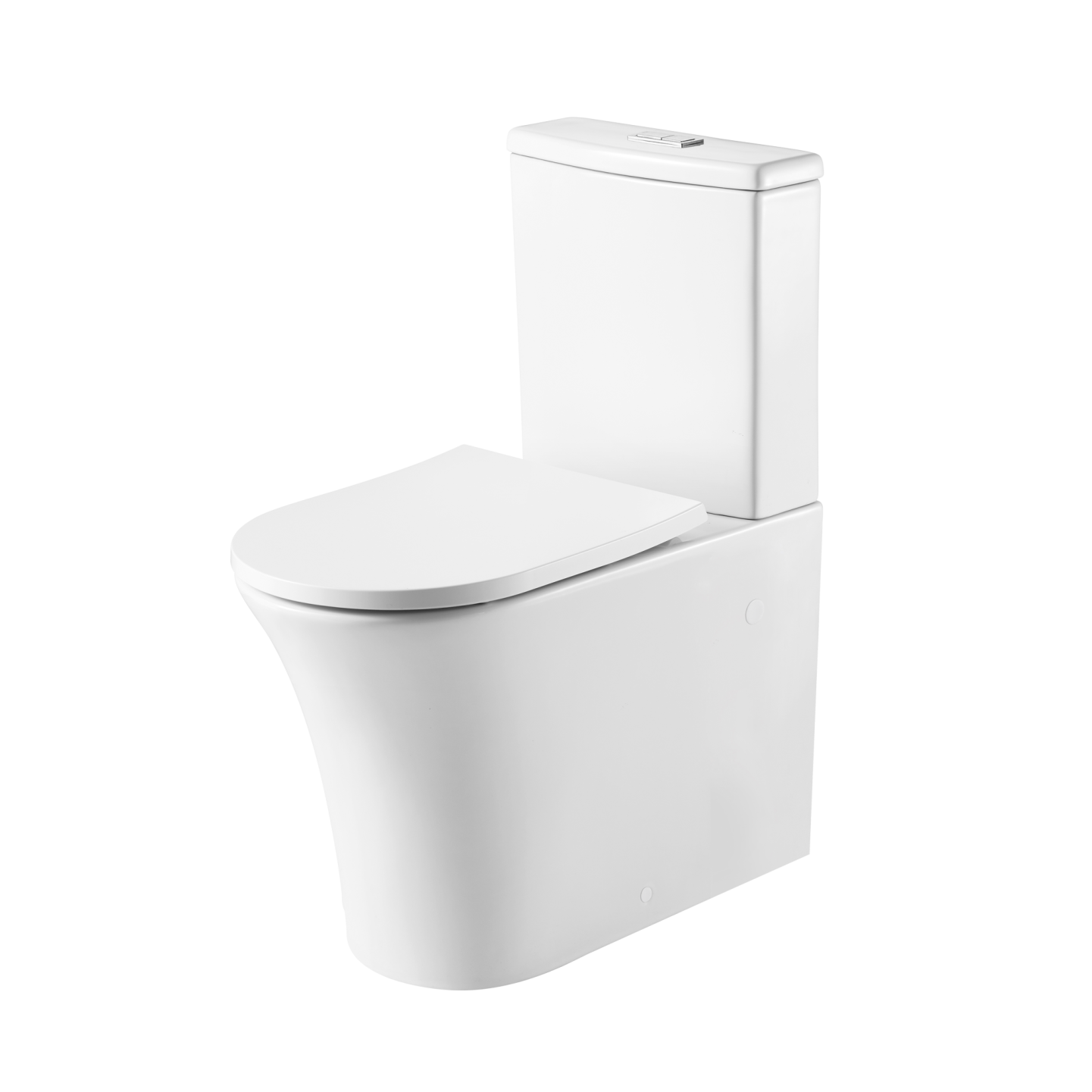

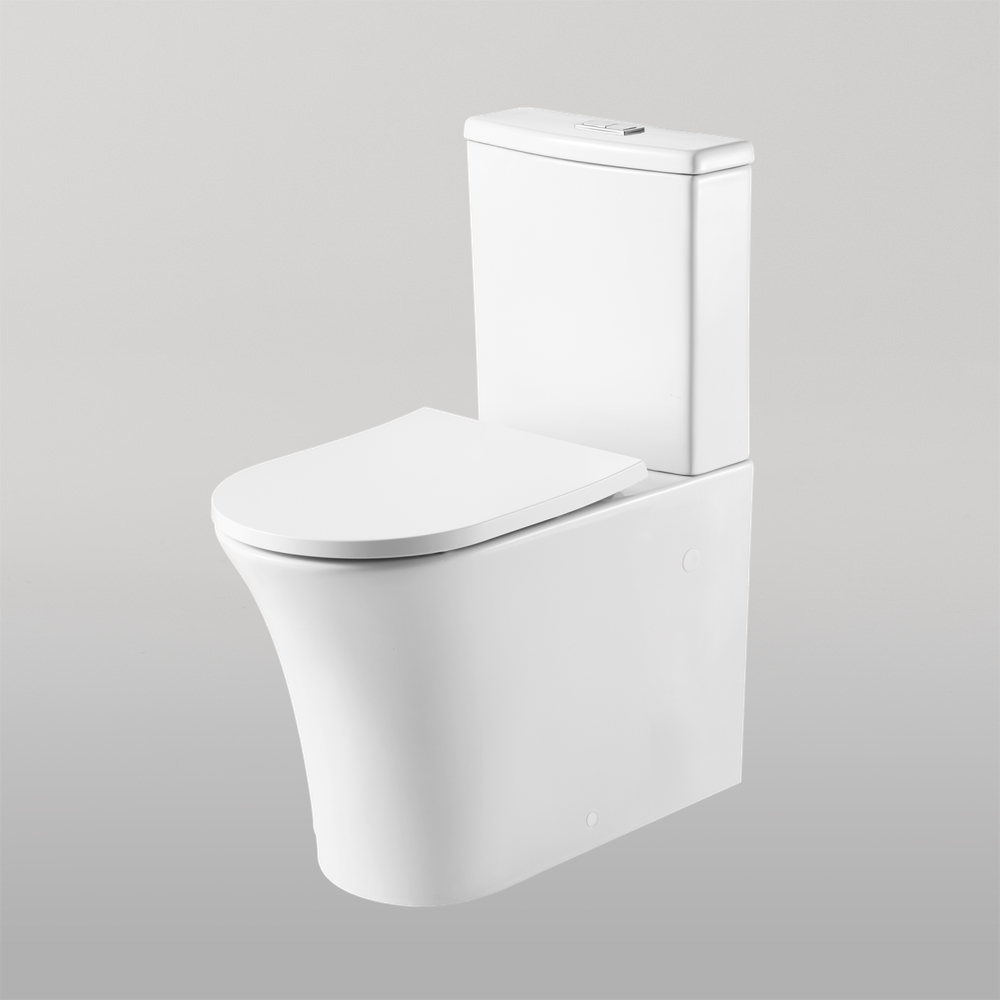

Dublin Back To Wall Toilet Suite White

Dublin Suite consists of Pan: DU1343BT, Cistern: DU1343BW, Seat Cover: DU1343BST

Product Feature

Wels rating: 4 Stars, 3.5 L average flush
Wels registration number: L06282 (P-Trap) / L06283 (S-Trap)
Pan: Rimless
Trap(s): Universal (S or P Trap), S Trap, P Trap
Cistern: Geberit dual flush valve (4.5L/3L)
Set outs: S-trap set out 50mm - 160mm as standard. P-trap set out 185mm floor to centre of outlet. Optional S-trap set out 150mm - 245mm (SPB0201).
Inlet: Bottom or back inlet
Seat: Soft close quick release with metal hinges
Colours: White
Installation: The installation of the toilet suite shall be in accordance with the normal minimum drain line grade requirements in AS/NZS 3500.2.
Materials: Vitreous china pan and cistern, compression moulded polymer seat
Weight: 48kg
Parts list: Cover Cap, inlet valve, flush valve, Rubber ring, Brass Bolt Set connected with cistern and pan supply hose, Bung for Bottom Entry in Cistern, Hose, Push Button, standard pipe, round seat cover, Hinge, Decorative cover, S-trap Connector, seal ring, fixing plate, fixing screw, Floor fixing screw
Warranty: 20 years vitreous china cistern and pan replacement of product; 5 years replacement seat; 2 years valves and fittings; 1 year seals and labour (refer to Service & Warranty page for details)
Maintenance and care instructions: Clean with a soft cloth and warm soapy water as necessary - rinse and dry after cleaning. Avoid using abrasive or acid-based cleaning products.
